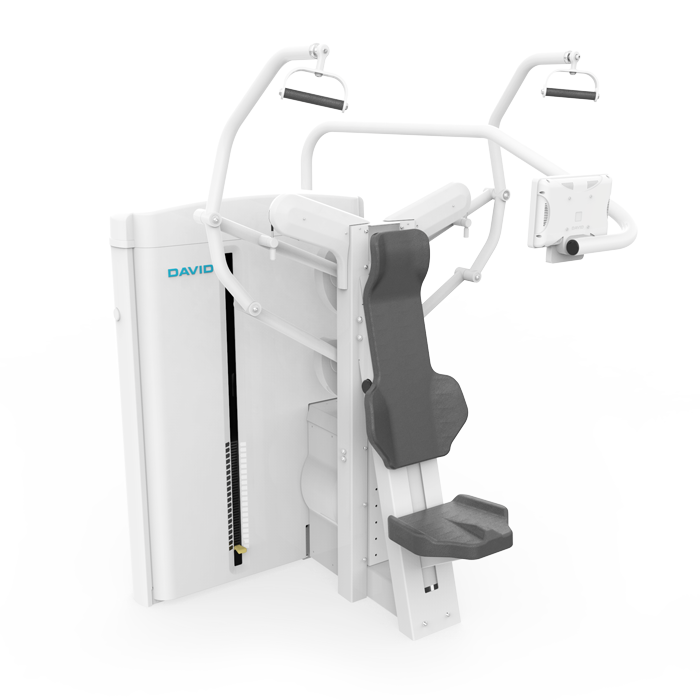

G420 Pulldown Device

Unique multi-joint exercise equipment for the upper body.

Contact Sales

The new generation in rehabilitation technology

With its roots in sports science, David technology was built to meet the most demanding needs of elite athletes. This required uncompromising biomechanical solutions. The latest evolution version of David devices is based on new, intelligent technology with automated adjustments and cloud-based software.

Shoulder video

Pulldown

Pulldown

Unique multi-joint exercise machine for upper body.

  • Optimal joint angles
  • From wide to narrow movement arm trajectory
  • Free handles
  • Scapular plane movement
  • Automatic seat height adjustment
  • EVE integration with strength and mobility test

Main target muscles

  • Latissimus dorsi
  • Trapezius
  • Rhomboideus minor
  • Rhomboideus major
  • Biceps brachii
  • Teres major
  • Pectoralis minor
muscle_man_G510-Kopie-01-300×402
Dimensions (Width, Length, Height)

116/143/159 cm, 46/56/63 in

Weight

350 kg, 772 lbs

GMDN Code

44231

Certification

Medical-CE device, class 1M

Adjustments

Seat height: automatic

Isometric torque measurement points

31, 37, 42 cm/ 12, 14, 17 in

Power

Voltage: 110/240V 50/60Hz
Power (idle / actuators with load): ~36W / up-to 150W

Weight stack

2,5/100 kg, 5.5/220 lbs
