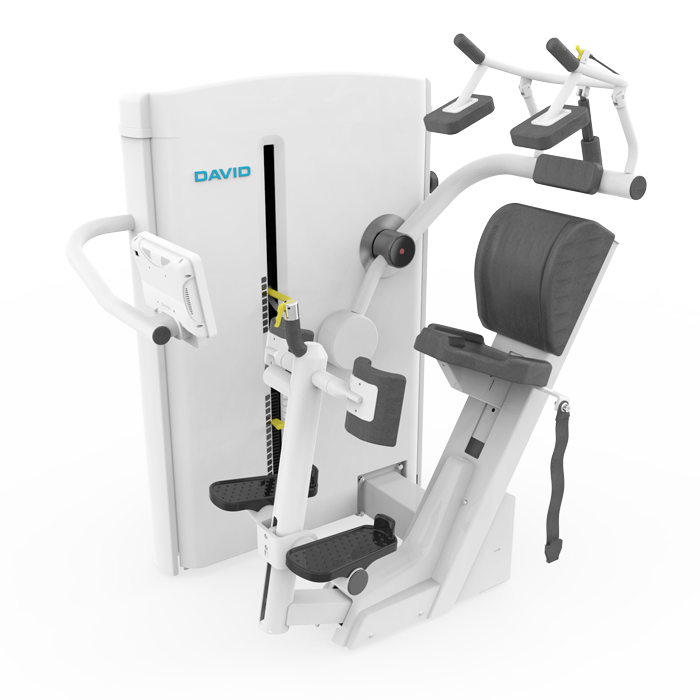

G130 Lumbar / Thoracic Flexion Device

Mobilizes the lumbar/thoracic spine in the sagittal plane activating the flexor muscles.

Request a Quote

Disorder prevalence

Back pain is among the most common disorders in western societies causing more financial losses to companies and insurance systems than any other single disorder except for the common cold. Up to 70 % of people have experienced back pain sometime during their lives; around 40 % had an episode lasting more than a day in the last 12 months and around 25 % in the past three months.

Watch the Video





Abdominal Crunch

Abdominal Crunch

Mobilizes the lumbar/thoracic spine in the sagittal plane activating the flexor muscles.

  • Automatic foot plate and seat adjustments (electronic version)
  • Range of Motion adjustment to accommodate various users
  • Unique hip fixation eliminates the activation of the strong hip flexors helping targeting abdominal area
  • Highly mobilizing segmental vertebrae level movement
  • EVE integration with strength and mobility tests
  • Weight stack: 2,5/100 kg, 5.5/220 lbs

Target muscles

  • Rectus Abdominis
G130_LUMBAR_THORACIC-FLEXION-Kopie-01
Dimensions (Width, Length, Height)

89/138/142 cm, 35/54/56 in

Weight

345 kg, 759 lbs

GMDN Code

61508 Core-body mechanical weight exerciser

Certification

Medical-CE device, class 1M

Adjustments

Range of motion adjustment: 8 steps

Seat adjustment: Step-less with an actuator (electronic), 1-7 gradual (manual)

Hip lock footplate: Step-less with an actuator (electronic), 1-9 gradual (manual)

Hip lock knee adjustment Step-less

Isometric torque measurement points

-30°, -15°, 0°, 15°, 30°, 45°

Power

Power (idle / actuators with load): ~36W (~0.15A) / up-to 140W (~0.6A)

Weight stack

0-100kg, 2,5kg steps
