G110 – Back Extension

Mobilizes the lumbar/thoracic spine in the sagittal plane activating the extensor muscles.

Request a Quote

David Spine Solution

David Spine Solution is a comprehensive evaluation and treatment concept for back disorders. The solution uses carefully targeted movement and controlled loading to reverse the deconditioning syndrome related to back pain.

Individualized programs are planned based on a questionnaire, physical evaluations and tests. Specially designed devices provide a safe and effective way of improving mobility, strength and spinal coordination.Watch the Video

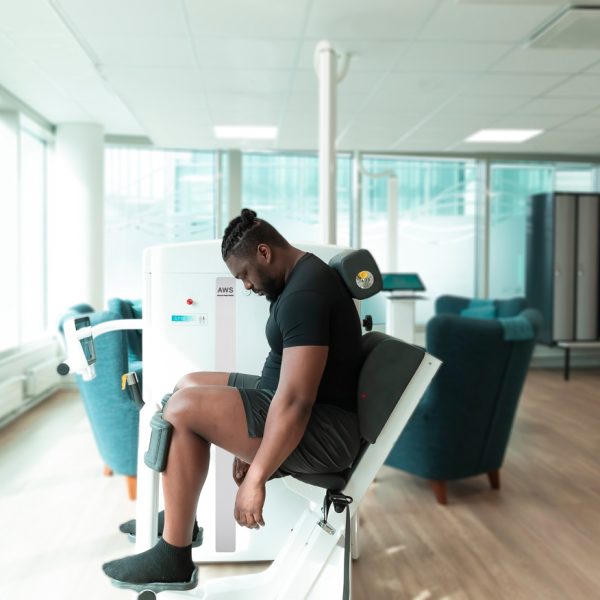

Back Extension

Mobilizes the lower back (lumbar/thoracic spine) in the sagittal plane activating the extensor muscles. Allows people with even severe and prolonged back pain and lack of coordination and strength to start mobilization and strengthening exercises with complete safety and minimal pain.

  • Automatic foot plate and seat adjustments (electronic version)
  • Range of Motion adjustment to accommodate various users
  • Unique hip fixation eliminates the activation of the strong hip extensors helping targeting lumbar and thoracic area
  • Segmental vertebrae level movement activates critical interspinales and rotatores muscles
  • EVE integration with strength and mobility tests
  • Weight stack: 2,5/100 kg, 5.5/220 lbs

Target muscles

  • Spinalis thoracis
  • Iliocostalis thoracis
  • Longissimus thoracis
  • iliocostalis lumborum
  • Interspinalis lumborum
  • Multifidus
  • Semispinalis thoracis
G110_LUMBAR_THORACIC-EXTENSION-2-Blau-01
Dimensions (Width, Length, Height)

89/138/139 cm, 35/54/55 in

Weight

264 kg, 582 lbs

GMDN Code

61508 Core-body mechanical weight exerciser

Certification

Medical-CE device, class 1M
EN 957-1
EN 957-2
IEC EN 60601-1
IEC EN 60601-1-2

Programs

With the DAVID Spine Solution, spine muscles can be exercised in a scientifically proven safe and effective way, even with severe complaints such as a herniated disc in the spine or neck, scoliosis, and osteoarthritis.

Adjustments

Range of motion: 12 steps

Seat adjustment: Step-less with an actuator (electronic), 7 steps (manual)

Hip lock footplate: Step-less with an actuator (electronic), 9 steps(manual)

Hip lock knee adjustment: Step-less

Upper back support (Movement arm): 3 steps

Isometric torque measurement points

0°, 30°

Power

Power (idle / actuators with load): ~36W (~0.15A) / up-to 140W (~0.6A)

Weight stack

2.5/100 kg, 5.5/220 lbs

Features

The features that truly set DAVID Solution apart from the competition are the biomechanical properties, the wide loading range, the ease of use, and the fully integrated biofeedback method with automated data collection functions.
