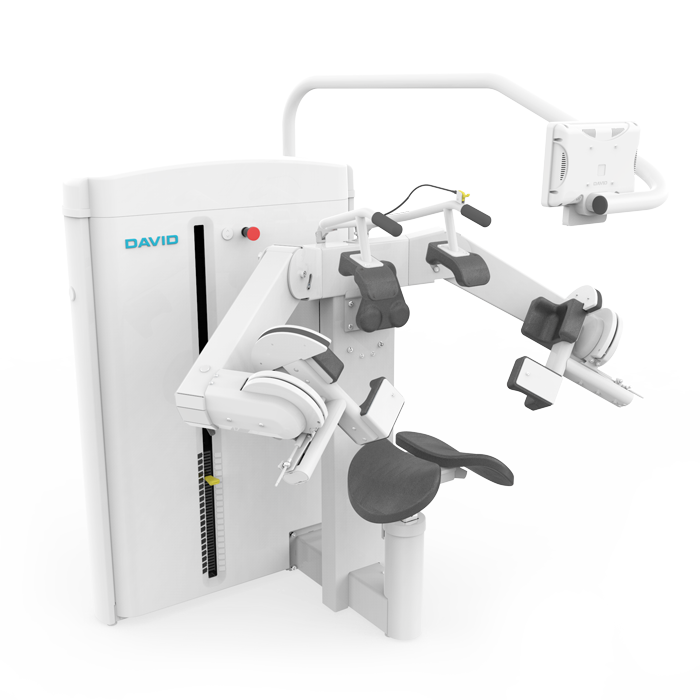

G660 Glenohumeral External Rotation Device

Pure isolated external rotation exercise machine for the shoulder. Optimized joint angles (scapular plane) enable effective treatment of a painful joint.

Request a Quote

A change towards exercise therapy

Today, more and more evidence is emerging which continuously prefers exercise therapy to surgery. Obviously, there are shoulder conditions that require surgical actions but for the most common problems such as shoulder impingement (or sub acromial pain syndrome as it is called nowadays) there is no scientific justification for surgical treatment.

Contact Sales Support



Glenohumeral External Rotation Device

Glenohumeral External Rotation Device

Pure isolated external rotation exercise for the shoulder. Optimized joint angles (scapular plane) enable effective treatment of a painful joint.

  • Automated seat adjustment and self-adjusting movement arms
  • Scapular fixation blocks unwanted movements of the scapula
  • Controlled movement and optimal resistance curve provide safety and effectiveness
  • Suitable for vast variety of people, from elderly people to athletes
  • Training with one or two arms
  • Abduction angle can be lowered for early stage rehabilitation
  • Easy to use, minimum supervision required
  • EVE integration with strength and mobility tests
  • Weight stack: 1/20 kg + 2,5/50 kg = 70 kg

Target muscles

  • Infraspinatus
  • Teres minor
Glenohumeral External Rotation Device
Dimensions (Width, Length, Height)

142/143/159 cm, 56/56/63 in

Weight

320 kg, 704 lbs

GMDN Code

44231

Certification

Medical-CE device, class 1M

Adjustments

Seat height: automatic
Arm length: automatic
Back support: 3 steps, manual

Isometric torque measurement points

-15°, 0°, 15°, 30° 60°, 90°

Power

Voltage: 110/240V 50/60Hz

Power: ~36W (~0.15A

Weight stack

1/20 kg + 2,5/50 kg = 70 kg, 2.2/44 lbs + 5.5/110 lbs = 154 lbs
