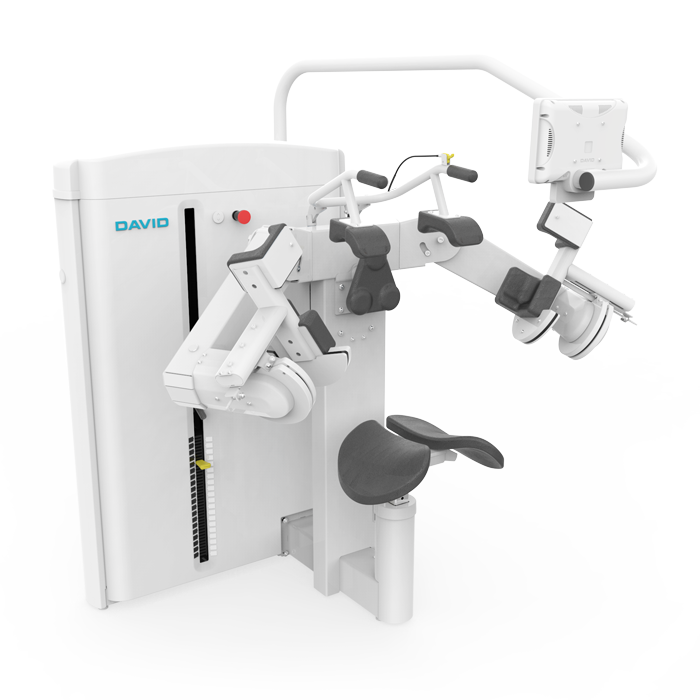

G640 Glenohumeral Internal Rotation Device

Pure isolated internal rotation exercise device for the shoulder. Optimized joint angles (60o abduction and scapular plane) enable effective treatment of a painful joint.

Request a Quote

Shoulder pain is a massive problem worldwide

Shoulder problems cause the most sick leaves of any musculoskeletal illnesses (15 days on average). Shoulder pain is the most common musculoskeletal disorder among people over 65 years (Taylor, 2005) and its prevalence has tripled in the course of 40 years (Harkness, 2005). Every second person will suffer from shoulder pain during their lifetime.

Contact Sales Support



Glenohumeral Internal Rotation Device

Glenohumeral Internal Rotation Device

Pure isolated internal rotation exercise for the shoulder. Optimized joint angles (60o abduction and scapular plane) enable effective treatment of a painful joint.

  • Automated seat adjustment and self-adjusting movement arms
  • Maximized subscapularis activation – effectively limits strong pectoralis major and latissimus dorsi
  • Scapular fixation blocks unwanted movements of the scapula
  • Controlled movement and optimal resistance curve provide safety and effectiveness
  • Suitable for a vast variety of people, from elderly people to athletes
  • Training with one or two arms
  • The abduction angle can be lowered for early-stage rehabilitation
  • Easy to use, minimum supervision required
  • EVE integration with strength and mobility tests
  • Weight stack: 1/20 kg + 2,5/50 kg = 70 kg

Target muscles

  • Subscapularis
G640_Glenohumeral-Internal-Rotation-01
Dimensions (Width, Length, Height)

142/143/159 cm, 56/56/63

Weight

320 kg, 704 lbs

GMDN Code

44231

Certification

Medical-CE device, class 1M

Adjustments

Seat height: automatic
Arm length: automatic
Back support: 3 steps, manual

Isometric torque measurement points

90°, 75°, 60°, 45°, 30°

Power

Voltage: 110/240V 50/60Hz

Power: ~36W (~0.15A)

Weight stack

1/20 kg + 2,5/50 kg = 70 kg, 2.2/44 lbs + 5.5/110 lbs = 154 lbs
