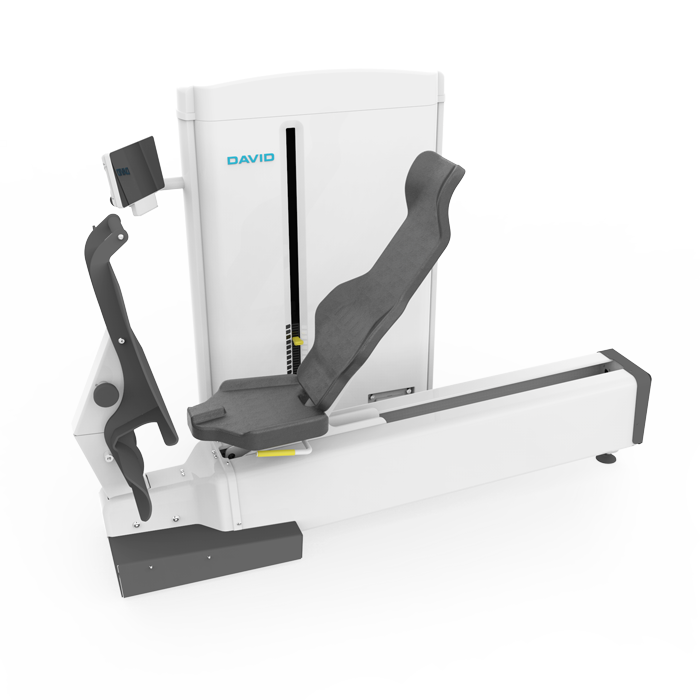

G220 Leg Press Device

The multi-function leg press device for a variety of use ranging from rehabilitation to sports training. Excellent for geriatric training

Request a Quote

Providing a targeted, safe and efficient solution.

David Hip and Knee devices is key to manage the challenges set by ageing population and to improve surgery outcomes with pre- and post-operative treatment programs.

Watch the Video

Leg Press

Leg Press Device

Leg press for variety of use ranging from rehabilitation to sports training. Excellent for geriatric training.

  • Leg Press and Calf Exercises
  • Back support in a comfortable 50-degree angle
  • Suitable for plyometric (jump) exercises
  • Footplate with three zones for different foot positions
  • Additional “pre-step” for easy entry
  • EVE integration with strength and mobility tests
  • Weight stack: 5/200 kg, 11/440 lbs

Target muscles

  • Rectus femoris
  • Vastus medialis
  • Vastus lateralis
  • Gluteus maximus
  • Biceps femoris – Long head
  • Semimembranosus
  • Semitendinosus
  • Gastrocnemius
  • Soleus
Leg press muscles
Dimensions (Width, Length, Height)

103/189/139 cm, 46/53/55 in

GMDN Code

35144

Certification

Medical-CE device, class 1M:

Adjustments

Range of motion adjustment: 55 cm in 5 cm steps (Marked 1 -12), 22 in. in 2 in. steps

Foot height adjustment: three zones

Isometric torque measurement points

0, 5, 10, 15, 20, 25 cm/ 0, 2, 4, 6, 8, 10 in

Power

Voltage: 110/240V 50/60Hz
Power (idle / actuators with load): ~36W / up-to 150W

Weight stack

5/200 kg, 11/440 lbs
